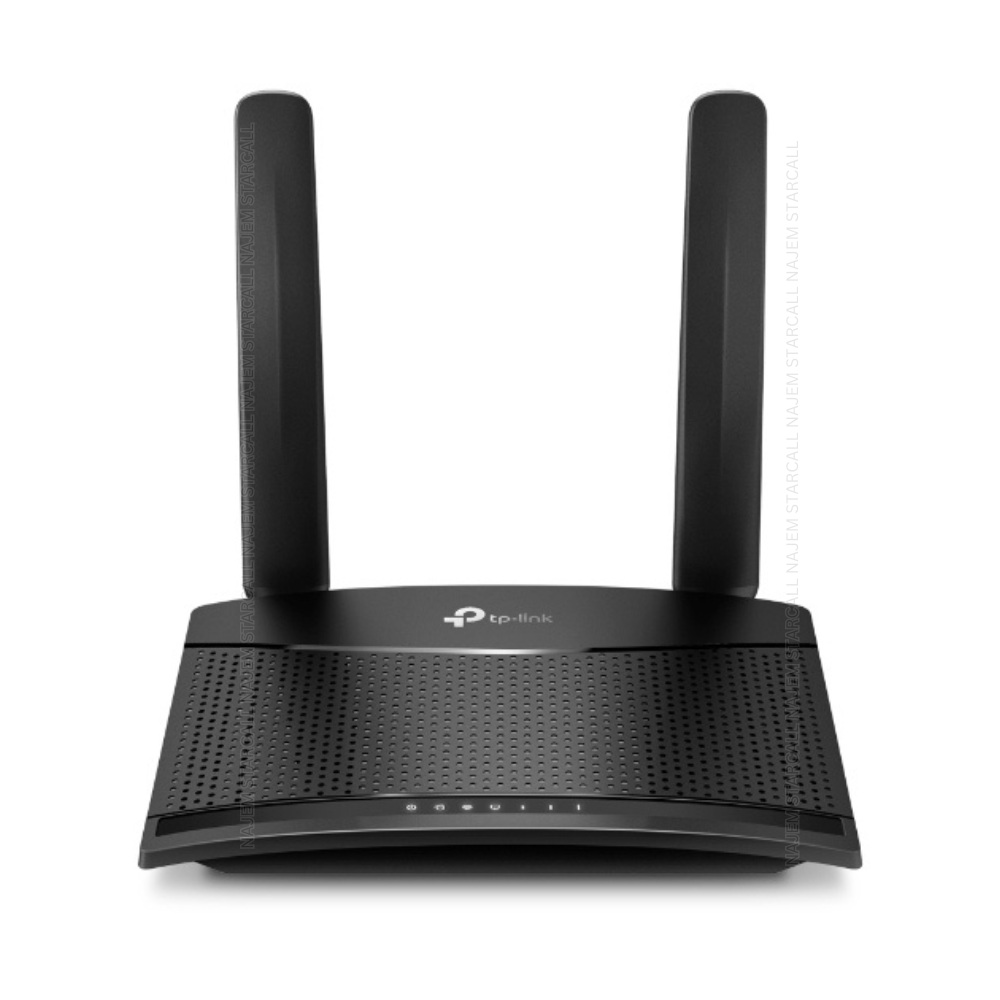

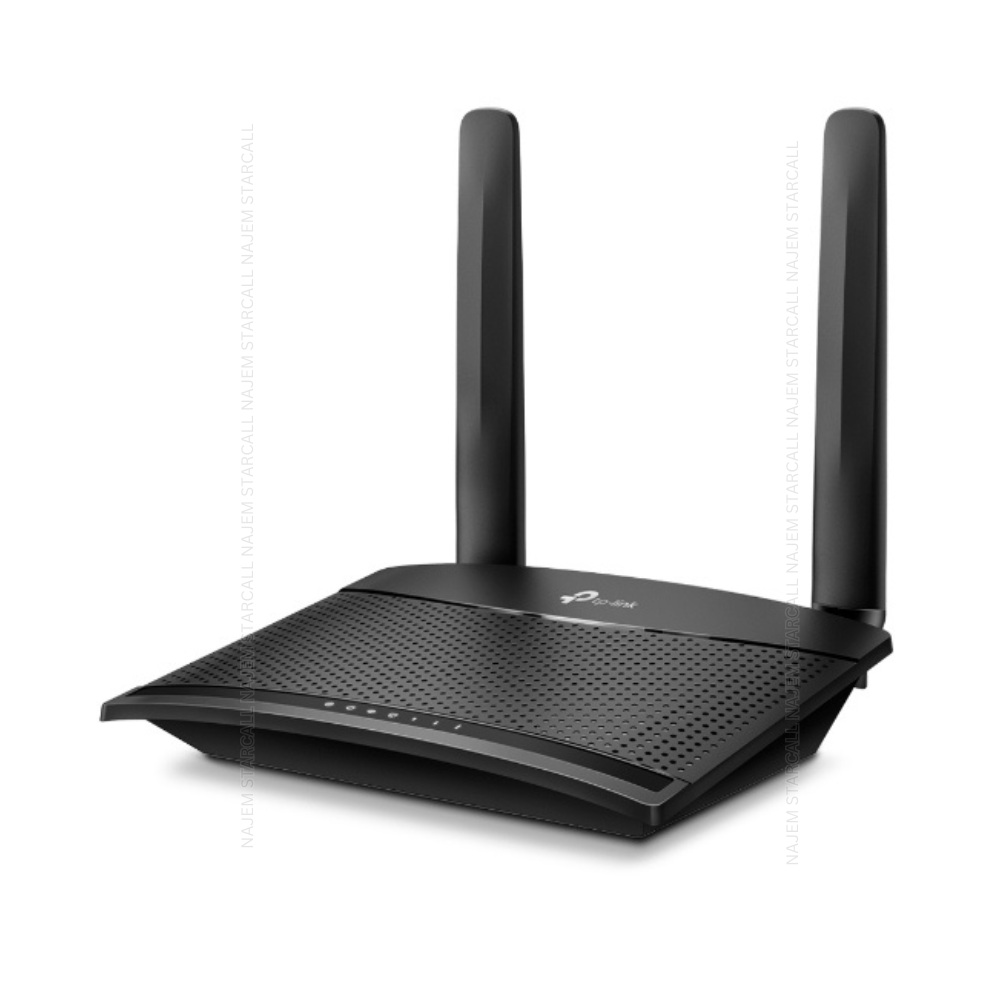

TP-Link MR100 300 Mbps Wireless N 4G LTE Router

50.00 $

  • Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

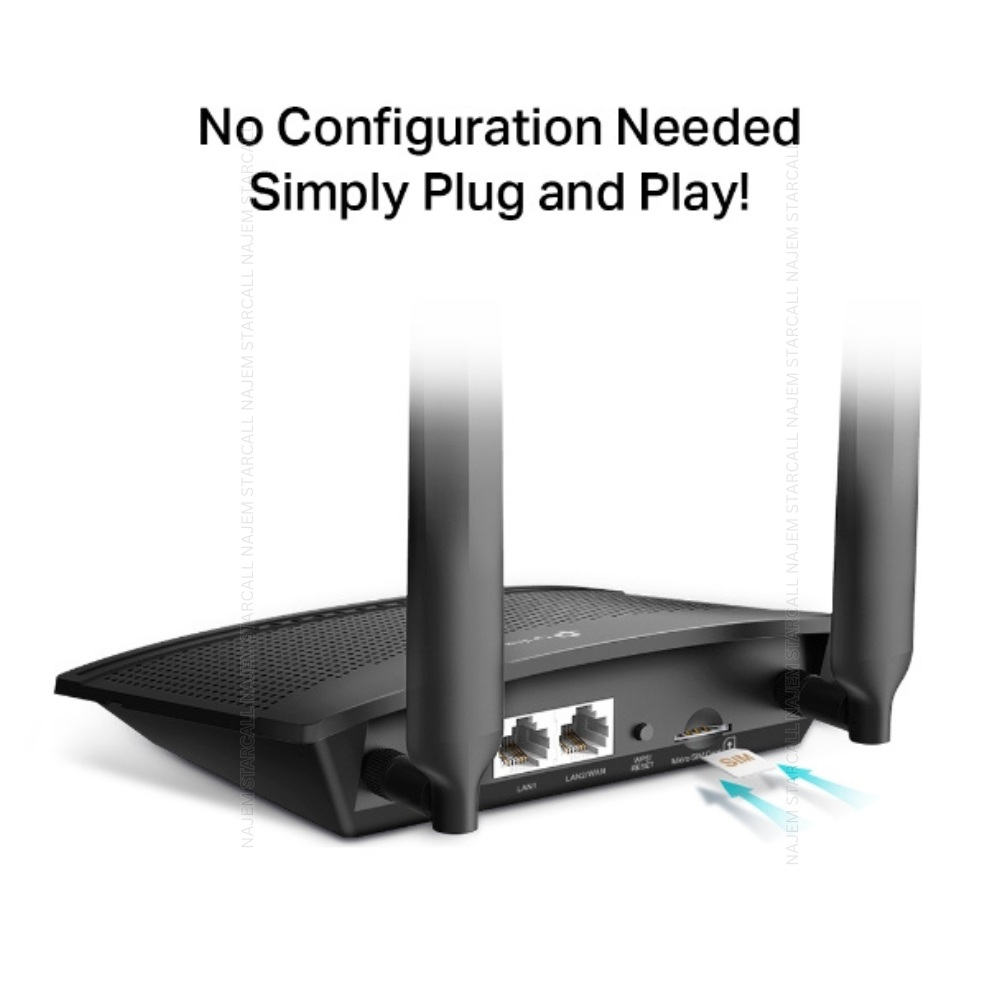

  • Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
  • Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas
  • Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can’t get a 4G connection

TP-Link MR100 300 Mbps Wireless N 4G LTE Router

Specifications

HARDWARE FEATURES
INTERFACE 1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,
1 Micro SIM Card Slot
BUTTON WPS/Reset Button
EXTERNAL POWER SUPPLY(EU) 9V/0.85A
DIMENSIONS ( W X D X H ) 6.06×4.49×1.42 in ( 154×114×36 mm)
ANTENNA 2 Detachable External 4G LTE Antennas
ANTENNA TYPE V3/APAC: 2 Internal 4G LTE Antennas
V4/V2/V1: 2 Detachable 4G LTE Antennas



WIRELESS FEATURES
WIRELESS STANDARDS IEEE 802.11b/g/n
FREQUENCY 2.4 GHz
SIGNAL RATE 300 Mbps
RECEPTION SENSITIVITY 11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm
TRANSMIT POWER < 20 dBm (2.4 GHz)
WIRELESS FUNCTIONS Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
WAN FAILOVER Yes
WIRELESS SECURITY 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
NETWORK TYPE 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)



SOFTWARE FEATURES
SECURITY IPv4 SPI Firewall, IP and MAC Address Binding
OPERATING MODES 3G/4G Router, Wireless Router
WAN TYPE Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
MANAGEMENT Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
PORT FORWARDING ALG, Virtual Server, Port Triggering, UPnP, DMZ
DYNAMIC DNS DynDns, NO-IP
PROTOCOLS IPv4, IPv6
GUEST NETWORK 2.4 GHz Guest Network
ADMINISTRATION Upgrade Firmware, Factory Default, System Log, Diagnostic Tools



OTHERS
CERTIFICATION CE, RoHS
PACKAGE CONTENTS 300 Mbps Wireless N 4G LTE TL-MR100
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
REQUIREMENTS Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Micro SIM Card
ENVIRONMENT Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
SKU: TP-Link-MR100-4G-Router- Categories: ,
