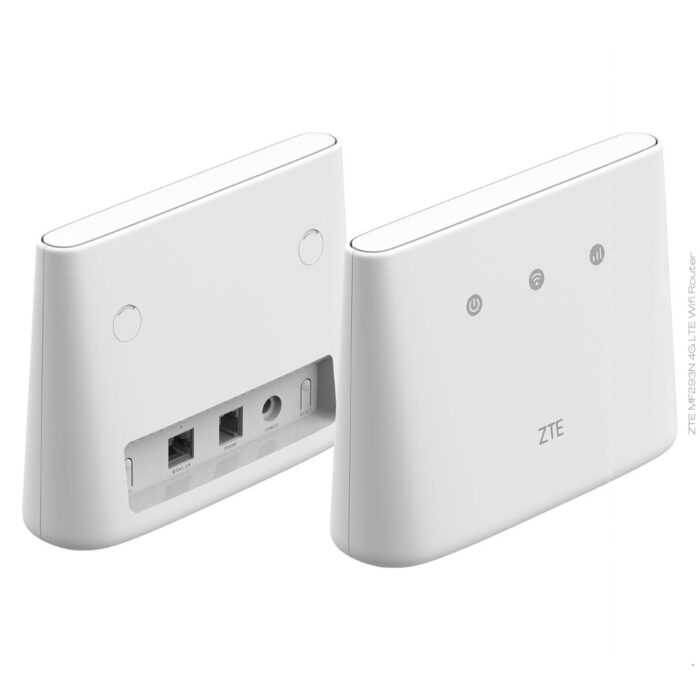

ZTE MF293N is a new 4G LTE Cat4 mobile WiFi router

Supports download speeds up to 150Mbps and upload speeds up to 50Mbps. Up to 32 wireless devices could connected with ZTE MF293N wireless router. It supports WiFi 802.11b/g/n 2×2 MIMO and there are two SMA connectors for external antennas.

ZTE MF293N 4G router Specifications

Product type: 4G WiFi router

Category: LTE Cat4

Platform: ZX297520V3E + RTL8192ES

Supported Frequency Bands
– FDD-LTE Bands: 1, 2, 3(4), 5, 7, 8, 20(12,13,17), 28
– TDD-LTE Bands: 38, (39), 40, 41
– DC-HSPA+/HSPA/UMTS Band: 1,2,(4), 5, 8
– EDGE/GPRS/GSM Quad Bands
(B2 and B39 interchange)
(B3 and B4 interchange)

 Peak data rate
– FDD-LTE: DL/UL 150/50Mbps(Cat4)
– TDD-LTE: DL/UL 110+/11+Mbps(Cat4)
– HSPA+: DL/UL 21.6/5.76Mbps

WiFi:
– 802.11 b/g/n
– 2.4Ghz, 2 x 2 MIMO, 300Mbps
– 32 users supported

*Dimensions: 164 x 124 x 51.5mm

 Interface:
– 1 x RJ45(FE, WAN/LAN)
– 1 x RJ11(FXS, CSFB/VoLTE/VoIP(customized))
– 1 x SIM Socket(4FF)
– 2 x SMA(external antenna)
– 1 x DC470(DC12V)
– Micro USB

Other configuration:
– 3 LED: Power, WiFi network
– Button: WPS, Reset
