Tp-Link TD-W9950 VDSL ADSL Modem Wifi Router
Specifications

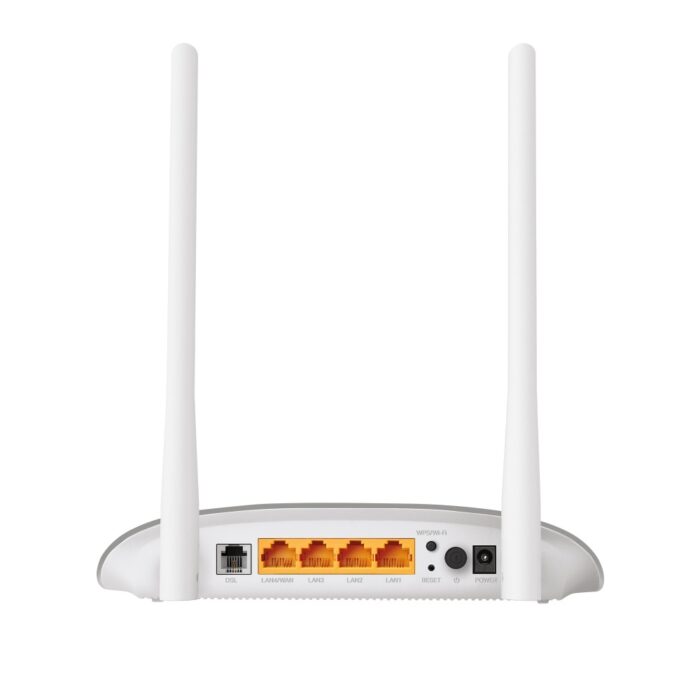

Interface | 1× 10/100 Mbps LAN/WAN Port 3× 10/100 Mbps LAN ports 1× RJ11 port |
---|---|
Button | WPS/Wi-Fi Button Reset Button Power On/Off Button |
External Power Supply | 9V/0.85A |
IEEE Standards | IEEE 802.3, 802.3u |
VDSL2 Standards | ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP) |
ADSL Standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis) |
ADSL2+ Standards | ITU-T G.992.5 |
Dimensions ( W x D x H ) | 7.1 × 4.9 × 1.4 in (181.6 × 125.7 × 36.2 mm) |
Antenna | 2 × 5dBi Fixed Omni-Directional Antennas |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11b/g/n 2.4GHz |
Wireless Speeds | 300 Mbps at 2.4 GHz |
Frequency | 2.400 – 2.4835 GHz |
Transmit Power | <20dBm(EIRP) |
Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
Wireless Security | Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
SOFTWARE FEATURES | |
---|---|
Quality of Service | WMM, Bandwidth Control |
Advanced Features | Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Mapping VLAN, 802.1P, Static Routing, DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP |
Security | Firewall & Dos Protection, Service Filtering, Access Control, IP & MAC Binding, IPv6 Firewall |
Operating Modes | DSL Modem Router, Wireless Router |
Management | Remote management, Telnet management, SSL for TR-069, SNMP V1/V2C, Web-Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools |
DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ, Manage Control |
Dynamic DNS | DynDns, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
Protocols | Supports IPv4 and IPv6 |
ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC – Up to 8 PVCs |
Guest Network | 2.4 GHz Guest Network |
IPSec VPN | Supports up to 10 IPSec VPN tunnels |
OTHERS | |
---|---|
Certification | CE, RoHS |
Package Contents | DSL Modem Router TD-W9950 External DSL Splitter RJ11 DSL Cable RJ45 Ethernet Cable Quick Installation Guide Power Adapter |
System Requirements | Windows 11/10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
