Tp-Link AC1200 Wireless Access Point WA1201

50.00 $

  • AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
  • Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
  • Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
  • MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.
  • Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
  • Captive Portal – Offers a designed portal page for heightened security and marketing
SKU: Tp-Link AC1200 Access Point WA1201 Categories: , Tags: , , ,
Description

Tp-Link AC1200 Wireless Access Point WA1201

HARDWARE FEATURES

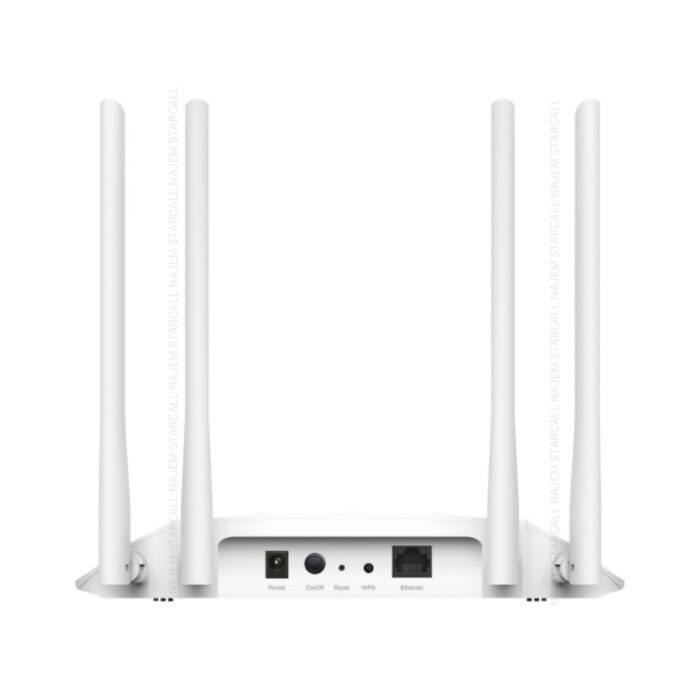

INTERFACE1× 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)
BUTTONPower On/Off Button, WPS Button, Reset Button
EXTERNAL POWER SUPPLY12V/1.5A
WIRELESS STANDARDSIEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
DIMENSIONS ( W X D X H )8.9 × 5.7 × 1.5 in
(225×145.5×37 mm)
ANTENNA TYPE4 Fixed High Performance Antennas



WIRELESS FEATURES
FREQUENCY2.4 GHz and 5 GHz
SIGNAL RATE867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
RECEPTION SENSITIVITY5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
TRANSMIT POWERCE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)
FCC: <30dBm(2.4GHz&5GHz)
WIRELESS MODESAccess Point, Range Extender, Client, Multi-SSID
WIRELESS FUNCTIONSEnable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
WIRELESS SECURITY64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCPServer, DHCP Client List
QUALITY OF SERVICEWMM
ADVANCED FUNCTIONSCaptive Portal



OTHERS
CERTIFICATIONCE, FCC, RoHS
PACKAGE CONTENTSWireless Access Point TL-WA1201
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
SYSTEM REQUIREMENTSMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,
10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
ENVIRONMENTOperating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
PROTOCOL SUPPORTIPv4, IPv6
