TP-Link 8 Port Gigabit Desktop PoE Switch with 4 Port PoE+ TL-SG1008P
55.00 $
- 8× 10/100/1000 Mbps RJ45 ports.

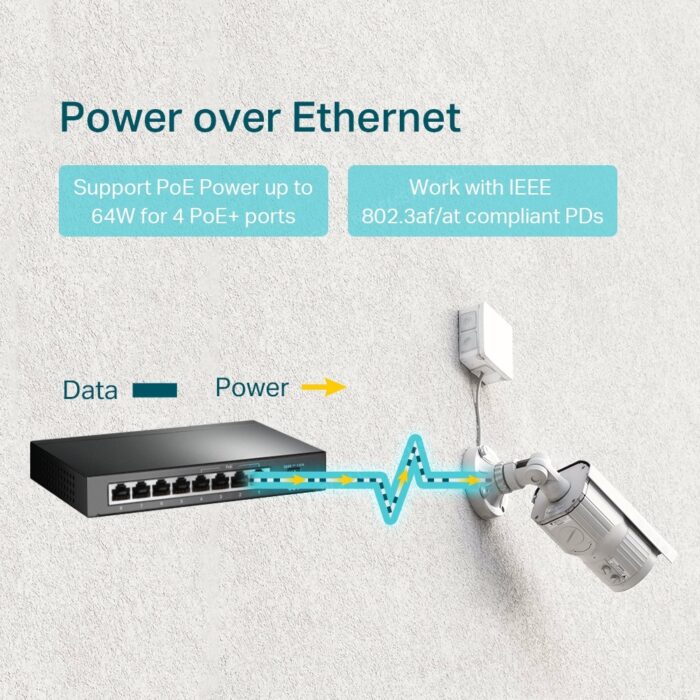

- 4× PoE+ ports transfer data and power on individual cables.
- Works with IEEE 802.3af/at compliant PDs.

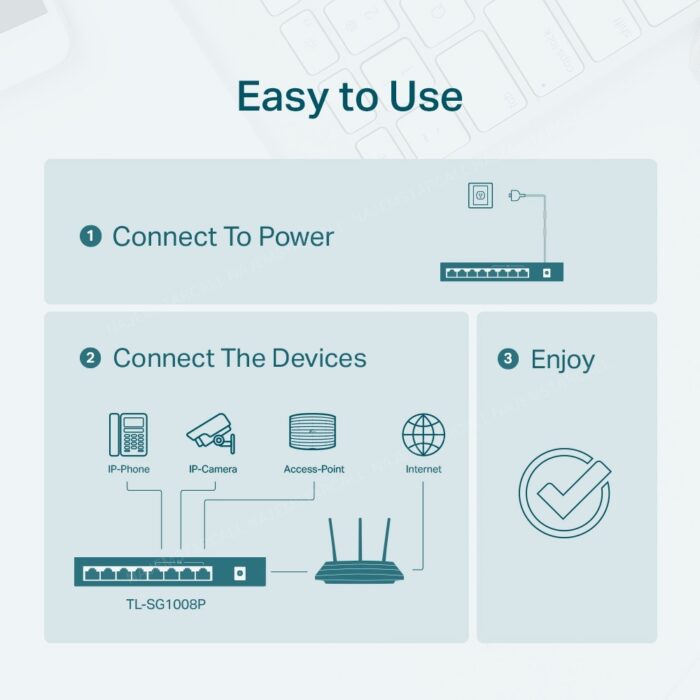

- Plug and Play, no configuration and installation required.
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
- Supports PoE power up to 30 W for each PoE port.

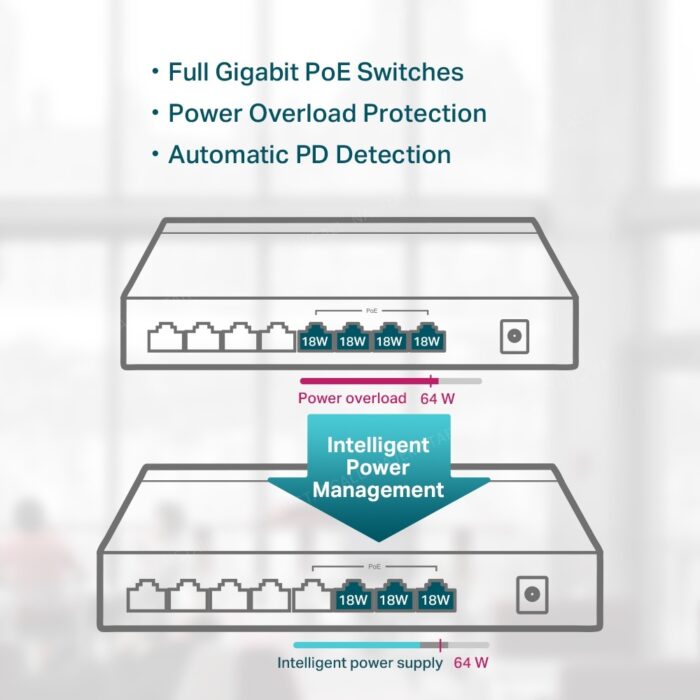

- Supports PoE power up to 64 W for all PoE ports
TP-Link 8 Port Gigabit Desktop PoE Switch with 4 Port PoE+ TL-SG1008P
Dedicated 8-Port Switch with 4-Port PoE+ (64 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 64 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Specifications
| HARDWARE FEATURES | |
|---|---|

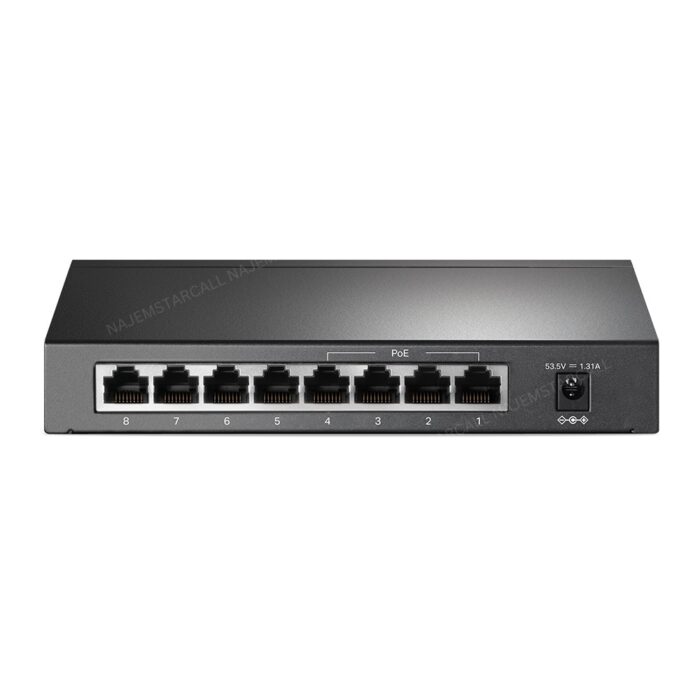

| INTERFACE | • 8× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
| NETWORK MEDIA | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| FAN QUANTITY | Fanless |
| PHYSICAL SECURITY LOCK | Yes |
| EXTERNAL POWER SUPPLY | External Power Adapter(Output: 53.5VDC / 1.31A) |
| PACKET FORWARDING RATE | 11.904 Mpps |
| POE PORTS (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 64 W |
| MAC ADDRESS TABLE | 4K |
| JUMBO FRAME | 16 KB |
| SWITCHING CAPACITY | 16 Gbps |
| DIMENSIONS ( W X D X H ) | 6.7×3.9×1.1 in (171×98×27 mm) |
| MAX POWER CONSUMPTION | • 5.39 W (220/50 Hz no PD connected) • 75 W (220/50 Hz with 64 W PD connected) |
| MAX HEAT DISSIPATION | • 18.38 BTU/h (no PD connected) • 225.75 BTU/h (with 64 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| TRANSMISSION METHOD | Store-And-Forward |
| ADVANCED FUNCTIONS | • Compatible With IEEE 802.3af/at Compliant PDs • IGMP Snooping • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control • 802.1p/DSCP QoS |
| OTHERS | |
|---|---|
| CERTIFICATION | CE, FCC, RoHS |

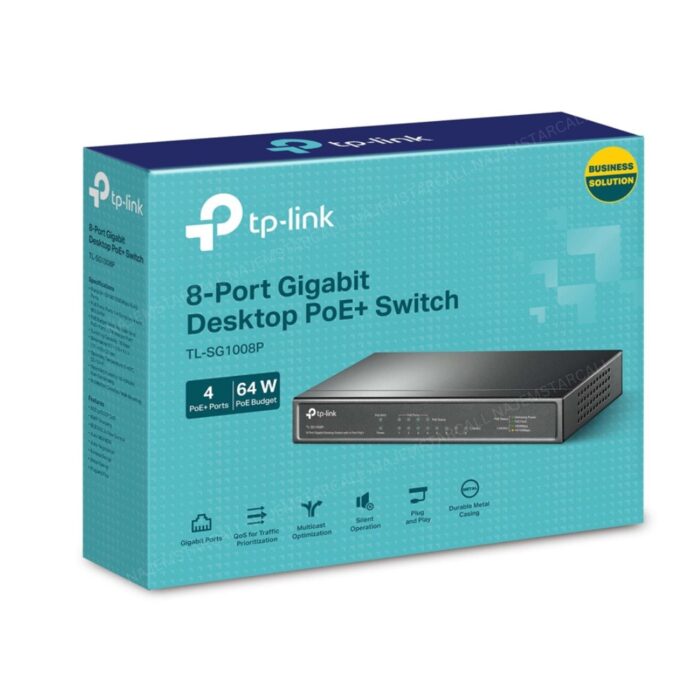

| PACKAGE CONTENTS | • TL-SG1008P • Power Adapter • Installation Guide |
| ENVIRONMENT | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
